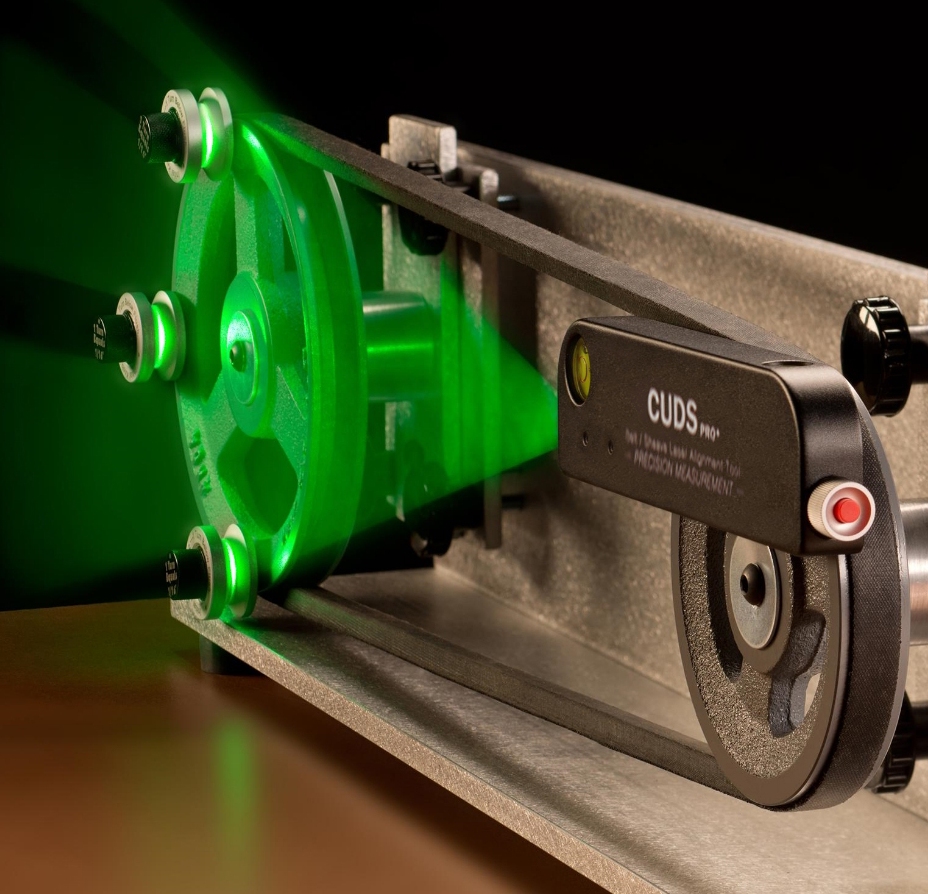

Green Belt Pulley Laser Alignment Tool
Designed for outdoor and high ambient light conditions.
Provides a clear and highly visible reference for accurate belt and pulley alignment.
Allows fast identification of angular and parallel misalignment.
Suitable for industrial environments where visibility is critical.
High-visibility green laser for bright environments
Magnetic mounting on pulley surfaces
Rigid aluminum body for consistent positioning
Dual bubble level for correct setup
Laser Belt & Pulley Alignment Tool for Industrial Maintenance.
Align belt drives quickly and accurately using a highly visible green laser.
Ideal for pumps, compressors, conveyors and other belt-driven machinery.Misalignment and manual guesswork can lead to premature belt and sheave wear and increased mechanical stress. A laser alignment system helps correct these issues.
Proper alignment reduces vibration, extends belt and sheave service life, and helps prevent unplanned downtime.
The green laser model provides higher visibility and is suitable for both indoor and outdoor alignment conditions, including environments with strong ambient light.
The laser unit and magnetic targets can be installed quickly, providing a clear visual reference for alignment.
Magnetic targets are adjustable to accommodate sheaves of different thicknesses.
Traditional alignment using string or straight-edge methods typically requires two technicians. With the laser alignment tool, one operator can perform the alignment efficiently.

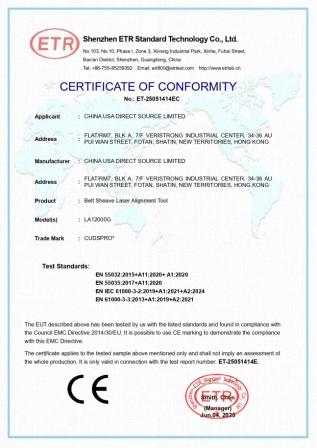

Specifications
Model: LA12000G (Green)
System Type: Magnetic Sheave Alignment System
Laser & Performance
- Laser Class: Class II
- Power Output: < 1 mW
- Wavelength: 520–540 nm
- Alignment Accuracy: ±0.5°
- Operating Distance: Up to 10 m (32 ft)
Measurement Range
- Sheave Diameter: 60 mm – 770 mm (2.5″ – 30.5″)
- Target Adjustment: Up to 16 mm (5/8″)
Power
- Battery: 2 × AAA
- Operating Time: Approx. 8 hours
Construction
- Housing & Targets: High-grade anodized aluminum
- Magnets: Nickel-plated rare-earth
Dimensions
- Laser Tool: 45 × 17 × 16 mm
- Magnetic Targets: Ø32 mm × 28 mm
- Carrying Case: 210 × 265 × 80 mm
Other
- Targets Included: 4 (incl. 1 spare)
- Total Weight: 0.9 kg (2 lb)
- Warranty: 2 years
| Weight | 0.8 kg |
|---|---|
| Dimensions | 27 × 22 × 8 cm |
